Specification of Non Asbestos Jointing Sheet TEADIT NA 1122M
Applications:
TEADIT style NA1122M was developed to exhibit superior
thermal stability during extreme thermal cycling applications. It
is specifically recommended for saturated and superheated
steam services but has also proven itself to be very effective in
sealing liquid petroleum derivates, ethanol, chemical products
and other fluids. Field tests have validated the results found in
our laboratories and have confirmed the higher performance
capabilities of the NA1122M compressed sheet.
Construction:

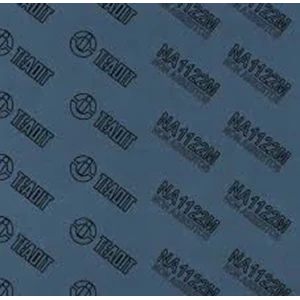

TEADIT style NA1122M is a compressed non-asbestos sheet
gasket material produced from a combination of inorganic
fibres and special fillers, bonded with nitrile rubber (NBR) in
combination with wire reinforcement. It is manufactured through
the hot calendar process under rigorous quality control
standards that are registered under ISO-9001 certification.
TEADIT style NA1122M is also available without wire
reinforcement as style NA 1122
Specification:
Compliance ASTM F104 - 719140E33-M9
Temperature Continuous Service: 430°C
Maximum: 550°C
Pressure Continuous Service: 102 bar
Maximum: 150 bar
Color Black
Product standard:
• Thickness: from 0,8mm up to 3,2mm
• Sheet size: 1.500 x 1.600 mm and 1.500 x 3.200 mm
