Description:

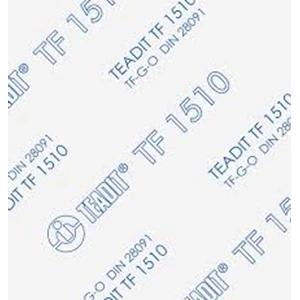

TEADIT TF 1510 is a highly compressible PTFE - Gasket - Sheet
manufactured by a unique process which provides a high level of
fibrillation to overcome the creep relaxation and cold flow
problems associated with standard (skived or moulded) PTFE
sheets. TEADIT TF 1510 is produced from virgin PTFE resin filled
with hollow glass micro spheres.
Advantages:
• TEADIT TF 1510 is suitable for service with a wide variety of
aggressive fluids, including hydrocarbons, acids and caustics,
solvents, water, steam, hydrogen-peroxide, refrigerants, etc.
• Excellent mechanical strength and high stress retention value.
• The high compressibility of TEADIT TF 1510 makes it particularly
suitable for use with stress sensitive and/or fragile flanged joints,
e.g. glass, ceramics, plastic, etc.
• The excellent malleability of TEADIT TF 1510 makes repairing of
small damages and/or irregularities of the sealing area (flange
surface) unnecessary.
• TEADIT TF 1510 is quick and simple to install. The used gasket
can be removed easily and without residue.
Properties:
• Color: white
• Size: Sheets of 1500 mm x 1500 mm
• Thickness: 1.5 mm up to 3.0 mm
• Temperature: -268 ºC to +260 ºC
• Chemical resistance: chemically inert against all substances (pH
0-14), including the most aggressive acids and lyes. It is not
recommended for strong caustic service above 80°C. It may not
be used in contact with molten alkali metals and elemental
fluorine at high temperature and high pressure.
• Operating Pressure: 55 bar
• Aging: TEADIT TF 1510 is not subject to aging or weathering. It
can be stored indefinitely.
• FLAME RESISTANT!
• Can be used with oxygen
PTFE Gasket
