Description:

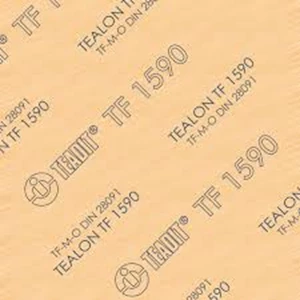

TEALON TF 1590 is a structured PTFE - Gasket - Sheet
manufactured by a unique process which provides a high level of
fibrillation to overcome the creep relaxation and cold flow
problems associated with normal (skived or moulded) PTFE
sheets. TEALON TF1590 is produced from virgin PTFE resin filled
with Silica.
Advantages:
• It is suitable for services with high pressures and temperature,
especially in chemical processing and hydrocarbon plants in
strong acids (except hydrofluoric), solvents, hydrocarbons, water,
steam, and chlorine.
• TEALON TF 1590 is quick and simple to install. The used gasket
can be removed easily and without residue.
Properties:
• Color: fawn
• Size: Sheets of 1500 mm x 1500 mm
• Thickness: 0.5 mm up to 6.4 mm
• Temperature: -268 ºC to +260 ºC
• Chemical resistance: chemically inert against all substances (pH
0-14), including the most aggressive acids and moderate lyes. It
is not suitable for molten alkali metals and elemental fluorine at
high temperature and pressure.
• Operating Pressure: max. 83 bar
• Ageing: TEALON TF 1590 is not subject to ageing or
weathering. It can be stored indefinitely.
• TEALON TF 1590 complies to FDA requirements for food, is
physiologically harmless and suitable for oxygen applications.
